Are you worried your next lighting project might fail after installation? You're not alone. Most commercial facade disasters start during the purchasing phase.

Here's what matters: Material compatibility, thermal stress design, batch consistency control, and environmental load matching determine your project's 5-year lifespan—not the brightness numbers or IP ratings printed on spec sheets. I've seen $1.2M in penalties happen because buyers checked the wrong things.

After analyzing hundreds of failed installations across coastal cities and high-altitude sites, I realized something critical. The problem isn't that people buy bad products. The problem is they evaluate products using surface-level criteria that hide the real engineering risks.

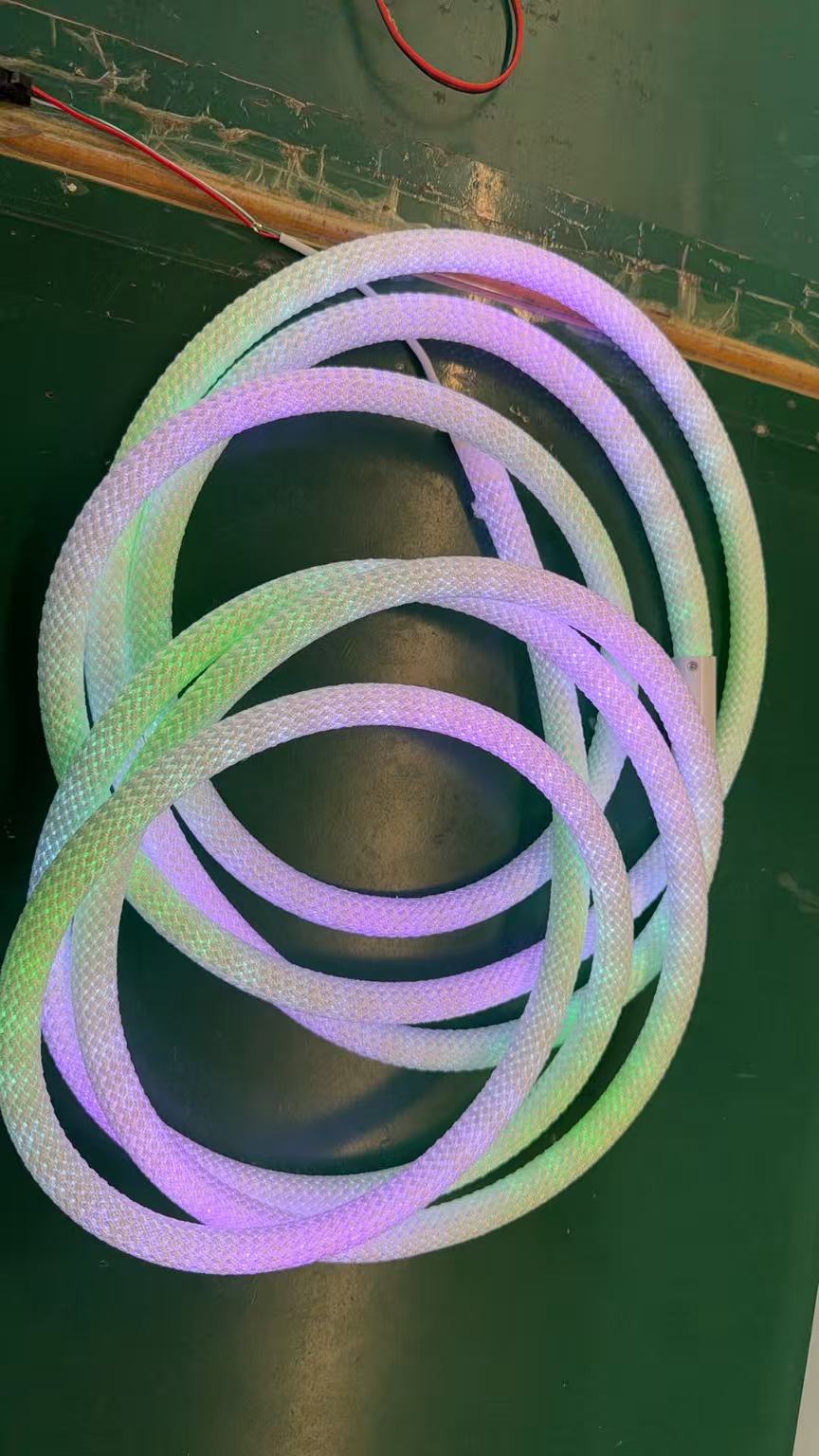

What Hidden Factors Actually Destroy Your Lighting Projects?

Most buyers feel confident after checking CCT values and IP ratings. That confidence disappears six months later when their facade starts showing color bands.

The real project killers are invisible: Chemical reactions between silicone and adhesives, uncalculated thermal expansion stress, extrusion process drift during bulk production, and the gap between lab IP tests and actual weather conditions. These eight hidden factors cause 90% of commercial lighting failures, yet they never appear on quotation sheets.

Let me break down what actually happens on construction sites. First, your silicone reacts with the mounting adhesive. Ordinary PU back glue triggers a catalytic reaction with low-grade peroxide-cured silicone within 2-8 months. This destroys the internal crosslink structure and corrodes your PCB pads. You won't see this in the showroom.

Second, thermal stress accumulates at every bend. Your silicone outer layer, FPC substrate, copper circuit, and LED chip each expand differently under temperature changes. When you mount these strips without stress relief gaps, the bending corners experience forced torsion. Coastal projects face 38°C days and 5°C nights. That's 0.8mm of expansion creating cumulative stress beyond the silicone's tensile limit.

Third, compression deformation collapses your waterproofing. Conventional 35° Shore A hardness silicone suffers permanent deformation under mounting pressure. When brackets press down continuously, the internal waterproof isolation cavity fails completely. Your IP68 rating becomes meaningless.

Fourth, batch production drifts from your approved sample. Non-fixed vulcanization temperatures and line speeds cause silicone shrinkage differences. Phosphor sedimentation shifts. The sample that passed testing used standard platinum catalyst dosage, but bulk production cuts that by 40% to save costs. This is sample-bulk material split production.

Fifth, your IP rating was tested in ideal conditions. IP67/IP68 static water pressure lab tests cannot simulate acid rain, salt fog, high-altitude UV exposure, and daily temperature swings. Your coastal installation faces composite environmental attack, not the single-factor stress from the lab.

Sixth, thin copper foil fails at flex points. Suppliers reduce FPC copper thickness to cut costs. This causes fatigue fractures at facade nodes where the strip bends frequently. The failure happens gradually, making diagnosis difficult.

Seventh, voltage drop kills your distant fixtures. Insufficient power supply margin and uncalculated line loss mean your 50-meter building loops lose control at the far end. Terminal sections experience uncontrolled light decay while near sections remain bright.

Eighth, cheap silicone yellows from the inside. Reduced platinum catalyst dosage and cheap filler trigger deep molecular yellowing, not just surface discoloration. This is irreversible chemical breakdown.

Here's the core truth I learned: Flexible neon strip reliability is material system engineering. Sample static test data cannot represent batch dynamic environmental performance. You need to audit the manufacturing process, not just the finished product specs.

How Does A Real Commercial Project Collapse?

I want to show you an actual failure case. This happened in 2024 at a coastal Grade-A office building. The project used 12,600 meters of silicone neon strips.

Before bulk order, samples passed complete third-party testing: IP68, UV aging, salt spray, and CCT consistency. Installation and acceptance were fully qualified. Six months later, the entire facade failed catastrophically. This is the nightmare scenario that haunts every lighting designer and contractor.

![Commercial facade lighting failure](https://siluxa.com/wp-content/uploads/2026/03/微信图片_20260319103012_154_141-scaled.jpg"Real project failure case study")

The failure pattern was systematic and devastating. Horizontal facade strips developed layered color banding across the whole building. 32% of corner bending positions created dark dead zones. 18% of wall-embedded sections showed radial cracking in the silicone outer skin. Salt fog penetrated the cracks and short-circuited the FPC. Exposed wall surfaces showed silicone layer powdering and integral peeling. Batch shipment CCT deviation jumped from controlled 3-step bins to 7-step bins. The overall facade became mottled and unprofessional.

Post-failure sampling revealed five root causes. First, the supplier switched materials after sample approval. They replaced high-purity nano silicon dioxide filler with ordinary calcium carbonate to reduce silicone raw material cost by 12%. Anti-UV platinum catalyst dosage dropped by 40% in bulk production. Only the sample received standard dosage. This is deliberate sample-bulk split production.

Second, the design team created a thermal stress trap. They used full hard buckle fixed mounting without 2mm thermal shrinkage gaps. The coastal environment's 38°C to 5°C daily temperature swing triggered 0.8mm silicone thermal expansion. Bending corners accumulated stress beyond the silicone tensile limit.

Third, lab testing conditions were artificially optimized. The UV aging test used static 340nm single-band UV exposure. Real coastal outdoor environment delivers composite UV plus chloride salt fog synergistic corrosion. The lab test didn't replicate actual attack mechanisms.

Fourth, continuous production quality drifted. The extrusion line's vulcanization temperature fluctuated ±8°C during bulk mass production. Phosphor uniform mixing failed. Later production batches experienced phosphor settlement causing inherent CCT drift. Early shipments and late shipments had completely different color temperatures.

Fifth, mounting pressure destroyed waterproofing. Embedded positions experienced long-term vertical compression from brackets. Conventional 38A hardness silicone showed 18% compression permanent deformation rate. The internal waterproof isolation cavity collapsed completely. Water ingress became inevitable.

The final project loss totaled over $1.2 million USD. This included 100% strip replacement, 12 days of facade construction shutdown, labor rework costs, project liquidated damages, and after-sales maintenance penalties. The lighting design firm and general contractor lost their long-term brand cooperative qualification immediately.

This is the invisible pit you cannot detect through parameter sheets and simple sample lighting tests. The failure wasn't caused by one mistake. It was a cascade of hidden engineering risks that sample-stage evaluation completely missed.

What Engineering Controls Actually Prevent These Disasters?

After analyzing 15 years of cross-border commercial lighting failures, chain brand rollouts, and municipal landscape project crashes, I identified four mandatory pre-purchase control measures. These aren't marketing promises. They're process, material, and structure closed-loop controls.

Consideration 1: Lock silicone material hardness and verify full material system compatibility. Reject single-index IP certification as your quality standard.

![Material compatibility testing](https://siluxa.com/wp-content/uploads/2026/03/微信图片_20260330170933_188_14-scaled.jpg"Silicone material system verification")

For outdoor facade, coastal, and high-UV plateau projects, you must lock 42±2 Shore A food-grade platinum-cured silicone. Compression permanent deformation must stay below 3.5% in 24-hour standard pressure tests. Prohibit peroxide-cured ordinary silicone for long-term outdoor engineering applications.

Complete adhesive matching pre-testing before bulk order. Finish 500-hour high-temperature lamination compatibility testing with your on-site designated structural back glue and buckle glue. This eliminates glue-silicone cross-reaction risk before installation begins.

Abandon nominal IP67/IP68 labels as evaluation criteria. Instead, audit 500-hour composite salt spray plus UV coupled aging post-IP retention rate directly. Don't accept static water pressure test data as proof of real-world durability. Static lab conditions don't simulate synergistic environmental attack.

Verify silicone filler composition and platinum catalyst dosage in your contract. Require batch production to maintain the same material formula as approved samples. Include penalty clauses for material substitution discovered through post-delivery testing.

Consideration 2: Calibrate bending radius stress and customize mounting structure fault tolerance. Match on-site construction logic, not theoretical installation diagrams.

![Bending stress analysis](https://siluxa.com/wp-content/uploads/2026/03/1233-6-1.jpg"Thermal expansion design for LED strips")

Distinguish between fixed bending permanent nodes and frequent thermal displacement bending nodes. These require different design approaches. Permanent corner bending must maintain minimum 6D strip body diameter to reduce FPC copper foil torsion fatigue.

For thermal displacement facades, reserve 1.5-2mm shrinkage gap per 8-meter strip section. Cancel full-section hard buckle fixed mounting. Allow the strip to expand and contract naturally within controlled limits.

For embedded wall and bridge hidden installation scenarios, adopt double-layer co-extruded reinforced silicone structure. This disperses vertical mounting compression stress across a larger material volume. Lock 1oz thickened rolled copper FPC for all bending-intensive projects. This prevents circuit fatigue fracture at flex points.

Calculate actual on-site thermal stress before finalizing mounting design. Use local climate data, not average regional statistics. Coastal sites, desert environments, and high-altitude locations each create unique thermal stress patterns. Your mounting structure must accommodate the specific thermal expansion coefficient superposition for your exact installation environment.

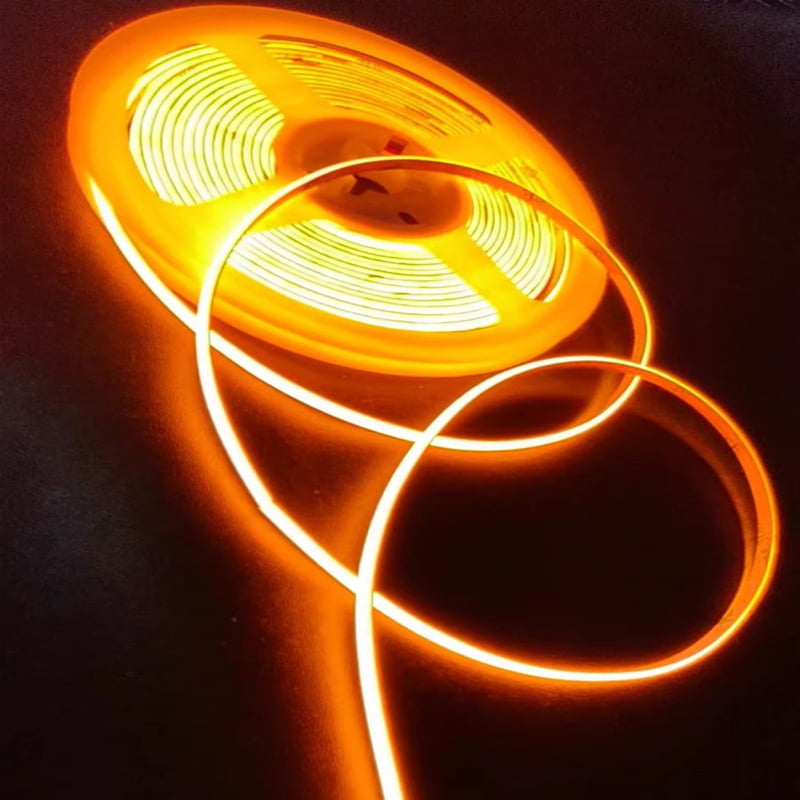

Consideration 3: Lock batch extrusion process parameters and implement CCT double-bin isolation. Eliminate batch color drift through production control, not post-production sorting.

Pre-procurement, lock your production line's fixed parameter template. Extrusion line speed, silicone feeding pressure, and tunnel vulcanization temperature must remain constant. Prohibit bulk production parameter random adjustment for efficiency gains.

Implement phosphor independent stirring tank isolation for different order batches. This avoids cross-mixing residual material from previous production runs. Residual material mixing is a primary cause of mid-batch CCT drift.

Enforce double CCT bin control at two stages. Factory primary sorting happens during production. Shipment re-sorting happens before delivery. For the same building and same facade, lock single bin range across all shipments. When cross-batch shipment is necessary, unify front material docking points.

Abandon manufacturer nominal CCT tolerance values. These are marketing specifications, not engineering controls. Sign batch color difference penalty clauses in your procurement contract. Make the manufacturer financially responsible for color consistency failures.

Require real-time production monitoring data as part of your quality documentation. Extrusion temperature logs, line speed records, and phosphor batch traceability should accompany each shipment. This creates accountability and enables root-cause analysis if problems emerge.

Consideration 4: Match environmental power load margin and screen long-term yellowing inherent risk. Calculate real-world electrical performance, not nameplate ratings.

For long-distance building loops exceeding 40 meters single-loop length, mandatory reserve 18%-22% power driver load redundancy. Calculate both copper line loss and high-temperature FPC resistance rise. These double factors combine to create terminal light decay.

Screen yellowing risk through 1000-hour dual-environment aging tests. Use high temperature plus humid UV exposure, not 200-hour short-term lab anti-yellow reports. Reject silicone formulations with inorganic filler proportions exceeding 15%. High filler content indicates cost-cutting that creates inherent yellowing risk.

For high-temperature downtown environments and tropical outdoor projects, upgrade to surface anti-powder silicone formulas. This solves composite climate outer skin chalking failure at the molecular level. Standard formulations will fail in these harsh environments regardless of other specifications.

Verify driver compatibility with your actual installation distances and power distribution architecture. Drivers rated for 50-meter runs in lab conditions often fail at 35 meters in high-ambient-temperature rooftop installations. Ambient temperature increases FPC resistance and accelerates voltage drop.

Why These Four Considerations Define Your Project Success?

Before purchasing flexible LED neon strips, understand what you're actually buying. You're not selecting lighting products. You're purchasing 5-8 years of on-site zero-maintenance risk control.

Surface brightness advantages, competitive pricing, and nominal parameter specifications become worthless the moment material mismatch, process drift, or structure defects trigger batch project failure. These four pre-purchase considerations fundamentally cut invisible rework costs, after-sales expenses, and brand implicit costs across your project lifecycle.
