Commercial LED Outdoor Lighting Made for Architects: Are You Defining the System or Just Choosing Products?

Factory workers assembling LED lighting components in a clean, organized workspace with green workstations and extrusion materials.

We all want lighting projects that deliver on design vision. But here's the uncomfortable truth: most outdoor LED lighting failures don't happen because of product defects. They happen because everyone thought they agreed on the same thing—when they actually didn't.

The real risk in commercial outdoor lighting projects isn't the LED strip itself. It's the decision-making process that happens before installation even begins. When architects, contractors, and suppliers operate on different definitions of "success," project failures become inevitable—regardless of how good the product specifications look on paper.

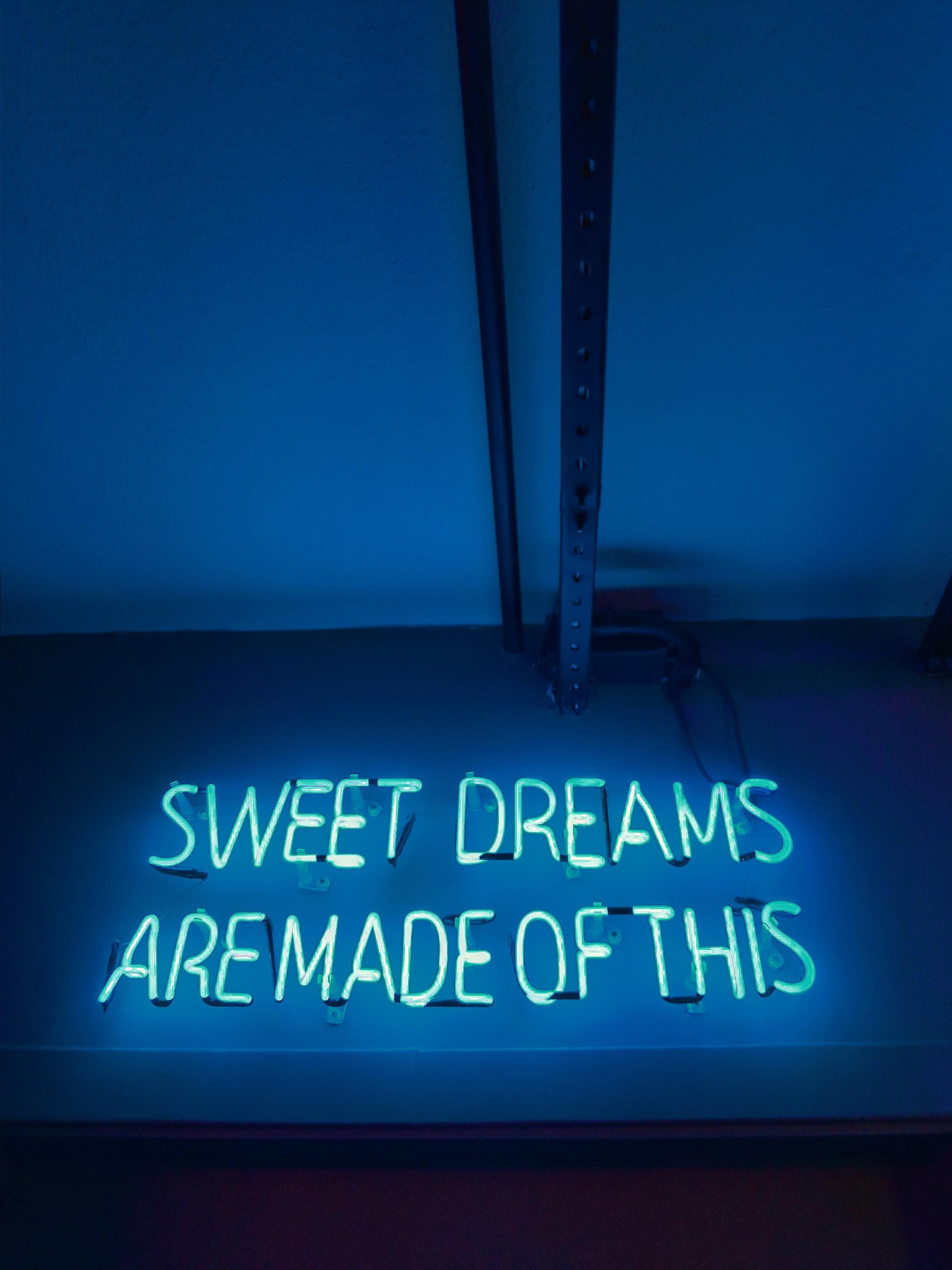

Commercial LED outdoor lighting architectural installation

I've watched this pattern repeat across projects. The rendering looks perfect. The sample performs flawlessly. The technical specs check every box. Then installation starts—and suddenly nobody can agree on what went wrong.

Why Do Professional Teams Misread Project Requirements Before Installation?

We assume visual approval equals technical readiness. It doesn't.

At Alister, we've reviewed hundreds of failed lighting projects. The pattern is consistent. Teams validate three things during design: the rendering works visually, the sample works in isolation, and the parameters work on paper. Everyone concludes the system is ready for deployment. But they've actually only validated local optical results. What engineering delivery requires is global system consistency. These are fundamentally different validation standards.

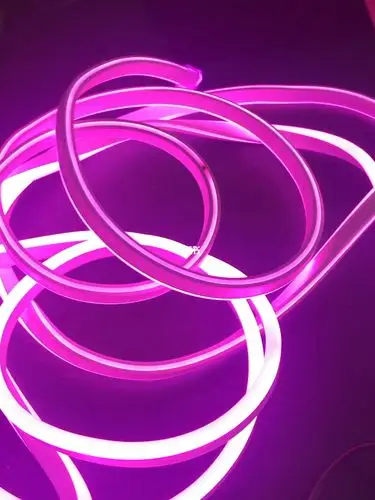

LED lighting design validation process

This creates a chain reaction I see repeatedly. Projects delay because structural conditions don't support the design path. Budgets explode because no one budgeted for adaptation costs. Acceptance fails because on-site results are logically consistent with design but visually inconsistent. Lighting effects miss expectations because continuity, corners, and joints were never systematically defined. Design gets scrapped because it can't exist within real structural constraints. Sites require rework because installation paths must be redesigned mid-project. Responsibility disputes emerge because design blames construction, construction blames materials, and procurement blames specifications. Suppliers argue because each party delivered "to their understanding of the standard."

The root cause is always the same. Projects define visual targets. They don't define system boundaries.

What engineering teams miss in specification documents

Most specification documents describe desired outcomes. They don't define operational boundaries. When a spec says "flexible" or "suitable for outdoor use" or "high uniformity," it creates the illusion of precision. But these terms mean nothing without constraint definitions. Flexible under what conditions? Single-point bending? Continuous curved surfaces? Minimum radius thresholds? Without boundaries, parameters become interpretation exercises rather than engineering requirements.

Why sample testing creates false confidence

Samples validate ideal conditions. Engineering validates system complexity. A one-meter sample performs in controlled environments with optimal handling and single-batch consistency. Real installations span long distances with multiple corners, multiple production batches, and multiple installation teams. The sample can't simulate the compounding variables that determine whether visual consistency survives at scale. Yet teams approve projects based on sample performance and assume system performance will match. It won't.

How certification standards obscure real-world compatibility

Certifications answer whether products meet standards. They don't answer whether products suit complex architectural systems. An IP68 rating confirms water resistance under test conditions. It doesn't confirm performance under structural stress in continuous sunlight with thermal cycling and installation-induced strain. Teams mistake certification for suitability and discover incompatibility during installation when it's too expensive to redesign.

How Do Design Assumptions Collapse During Real Construction Execution?

I'll walk through an actual failure. This happened on a commercial complex facade project.

The design phase looked flawless. Renderings showed smooth continuous curves. Material testing validated performance. Procurement specifications were complete and technically detailed. Everything appeared ready for construction.

![Commercial building facade LED installation](https://siluxa.com/wp-content/uploads/2026/06/blue-flexible-silicone-neon-light.webp"Facade lighting design to construction gap")

The design team approved samples based on three observations: light distribution was uniform, the silicone material handled curves as expected, and installation methods appeared feasible. Meeting minutes documented the conclusion that the design could proceed directly to construction detailing. But nobody verified whether "visual continuity" matched "structural continuity." The facade curves were real. Whether they were geometrically uniform curves or compound surfaces with variable curvature—nobody checked.

The general contractor simplified construction documentation to meet schedule pressure. Detailed drawings were broken into installation segments. Each area became an independent installation task. The plan assumed on-site micro-adjustments would handle any variations. The critical error was embedded here. What required system-level continuous design was downgraded to segmented installation with field splicing. Nobody flagged this as a risk because it looked like standard construction methodology.

Installation exposed three structural conflicts immediately. First, curvature wasn't continuous. The actual building surface had micro-variations in curve radius, but installation assumed uniform curvature throughout. Second, segment joints became visible. Connections invisible in daylight became obvious break points under illumination at night. Third, corner transitions couldn't be concealed. The design never defined how corners should be handled, so installation crews improvised solutions on-site—and each crew improvised differently.

Who made the wrong judgment calls

Every party made assumptions that seemed reasonable in isolation. The design team assumed the structure was an ideal curved surface. The general contractor assumed the design could be executed in segments. The installation team assumed corner details could be optimized on-site. The procurement team assumed the sample represented the complete system. Nobody was incompetent. Everyone followed standard industry practices. But standard practices optimized for local decisions, not system integration.

Why wasn't this caught earlier? Because validation stopped at sample segments, isolated wall sections, and single viewing angles. Nobody validated the complete system logic. The full-length continuous installation was never tested as an integrated whole before construction began. The result was predictable: each segment looked excellent, but the assembled system showed obvious visual breaks. Rework required disassembly. Schedules slipped by weeks. Designs were modified under pressure. Cost structures were recalculated. Responsibility disputes escalated through project management chains.

The most telling comment came from the site meeting: "Every section is fine individually, but when you put them together, something's wrong." That sentence captures the entire failure mode. Local optimization without system validation.

What Hidden Risks Live Inside Your Technical Specification Documents?

Most teams think risk lives in products. Actually, 80% of engineering problems come from definition errors, not execution errors.

Parameter definitions create the first trap. Specifications describe capabilities without defining the conditions under which those capabilities remain valid. "Bendable" means nothing without specifying whether that refers to single-point bending, continuous curved surfaces, or minimum bend radius under load. "Outdoor-suitable" is meaningless without defining UV exposure duration, thermal cycling ranges, and whether performance testing included structural stress states. Without constraint definitions, specifications communicate false precision.

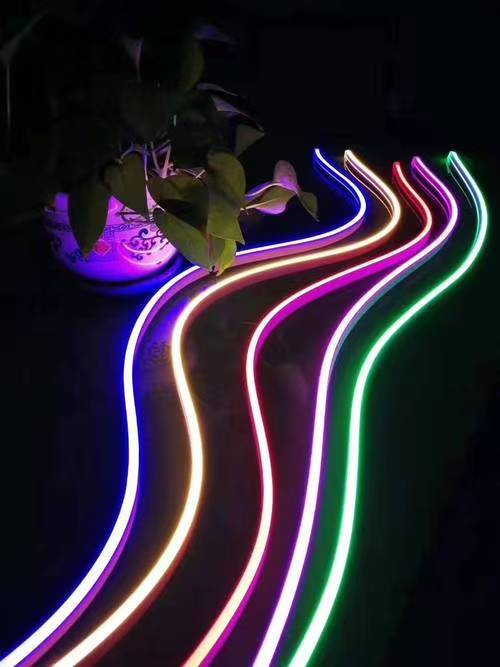

LED specification technical requirements

Test conditions create the second trap. Passing IP68 waterproof testing or UV resistance testing only confirms performance under test protocols. Test environments rarely match real installation environments. The missing variables matter: was the product tested while submerged, or just while exposed to water? Was testing conducted under structural stress conditions? Did environmental simulation include continuous solar exposure with thermal cycling? Products perform differently under real installation stress than under laboratory test conditions, but specification documents treat test results as installation predictions.

Acceptance criteria create a third trap. Vague standards like "brightness uniformity" or "matches design intent" allow different interpretations. Without defining observation distance, viewing angles, and ambient lighting conditions, acceptance becomes subjective. Different stakeholders evaluate against different internal standards, discover misalignment during final inspection, and cannot resolve disputes because no quantified acceptance criteria exist.

Why supply chain batch consistency gets ignored until it's too late

Projects treat procurement as single transactions instead of batch-managed systems. This works for products where unit-to-unit variation doesn't compound. It fails catastrophically for lighting systems where color temperature shifts, luminance variation, and optical consistency compound across hundreds of meters of continuous installation. Batch-to-batch variation that's invisible in samples becomes visually obvious across long runs. But teams don't discover this until installation is complete and the visual inconsistency cannot be hidden.

How Should Engineering Teams Actually Control Project Risk From Day One?

These aren't suggestions. These are control points you can write directly into project management workflows.

Requirements must upgrade from visual descriptions to system definitions. This means specifying continuous length logic, curvature variation ranges, corner transition methods, segmentation strategies, and viewing distance standards. Visual descriptions communicate design intent. System definitions communicate engineering constraints. Projects need both.

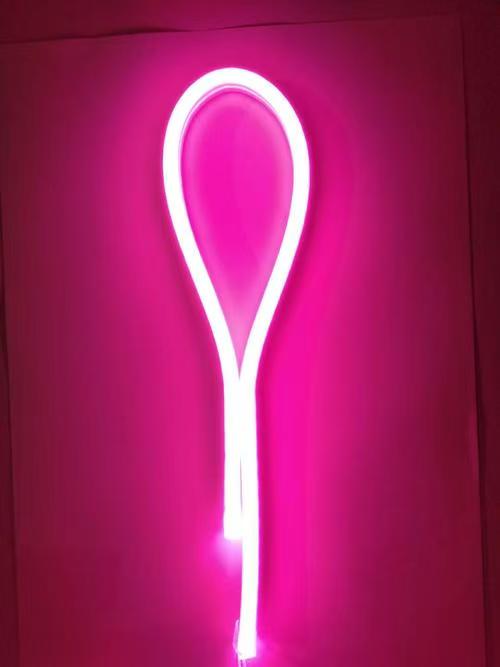

LED lighting project risk control workflow

Specifications must include system-level constraints, not just unit-level parameters. This means documenting installation path rules, joining protocols, batch consistency requirements, and surface adaptation ranges. Unit parameters describe what the product is. System constraints describe what the product can do within a complex installation.

Sample validation must upgrade to system segment validation. Instead of testing one-meter samples, validate corner-plus-straight-plus-joint combinations that simulate real installation paths at actual viewing distances. Laboratory testing validates products. System segment testing validates installations.

Why mock installations prevent expensive rework

Before full-scale construction begins, build a 1:1 mock segment using real installation methods on actual structural conditions. Don't allow laboratory testing to substitute for physical installation simulation. Mock segments expose interface problems, reveal hidden structural conflicts, and validate whether theoretical installation methods work with real construction crews under site constraints. This investment prevents rework that costs ten times more than the mock segment.

Installation tolerances must be defined in advance, not discovered during construction. This means specifying allowable curvature deviation ranges, acceptable joint misalignment thresholds, and on-site adjustment authority limits. Without pre-defined tolerances, every deviation triggers a judgment call, and judgment calls create disputes.

Supply chains must operate on batch system management principles. Ban single-transaction procurement logic for lighting projects. Instead, control batch uniformity, multi-shipment consistency for the same project, and color-optical consistency through grouped batch management. Products come in batches. Lighting systems require batch-level consistency control.

Acceptance standards must use quantified metrics, not subjective assessments. Replace phrases like "visually consistent" or "matches design" with measurable criteria: visual continuity at X-meter viewing distance, break point visibility thresholds, color variation tolerance ranges using visual-grade measurement methods. Quantified standards enable objective validation. Subjective standards enable disputes.

Who owns what when things go wrong

Responsibility boundaries must be documented during design phase, not negotiated during disputes. Specify who controls structural adaptation, who designs joint details, who authorizes on-site adjustments, and who validates final visual consistency. When responsibility lives in meeting minutes instead of contract documents, disputes become inevitable because nobody agreed on authority boundaries.

Risk warning mechanisms must operate before construction, not during installation. Identify problems during design development, correct issues during system segment validation, and freeze solutions during mock installation. By the time construction begins, the system should be validated. Discovering problems during installation means validation failed.

The Real Project Risk Isn't in the Materials—It's in the Method

If I could summarize every LED outdoor lighting project failure in one sentence, it would be this: projects fail when system definition gets simplified into product selection.

When projects only discuss "does it light up," they inevitably transform into structural problems, coordination failures, acceptance disputes, or responsibility arguments. The product works. The system doesn't. Because nobody defined the system.

Mature project teams don't evaluate products in isolation. They evaluate whether the system remains valid under real building conditions, with real installation constraints, delivered by real construction crews, and validated against measurable acceptance criteria.

At Alister, we manufacture silicone LED neon flex for commercial outdoor applications. But we've learned that our job isn't just making flexible, durable, weather-resistant lighting products. Our job is helping teams define systems that survive the gap between design intent and construction reality. That's what determines whether a lighting project succeeds or fails.

The question isn't whether your LED product meets specifications. The question is whether your specifications define a system that can actually be built.
